DNV godkjent skjermet kabel.

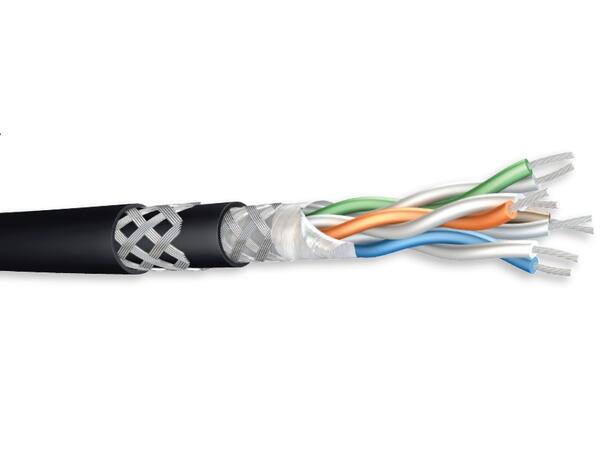

Conductor Stranded annealed tinned copper wire, 16awg

Insulation Cellular PO) Ø 3,40 mm nom.

Twisting 2 insulated conductors twisted to a pair

No. of Pairs 2

Pair Identification White X Blue, White X Orange, White X Green, White X Brown

Foil Screen Aluminium/polyester tape 100% coverage

Braid Annealed tinned copper wire braid, 60% coverage

Inner Jacket LSZH SHF1, Grey UV-Resistant Ø 17,50 mm nom. [RT 1,1 mm nom.]

Armour Galvanised Steel Wire Braid (GSWB)

Outer Jacket LSZH SHF1, Grey UV-Resistant Ø 21,50 mm nom. [RT 1,2 mm nom.]
